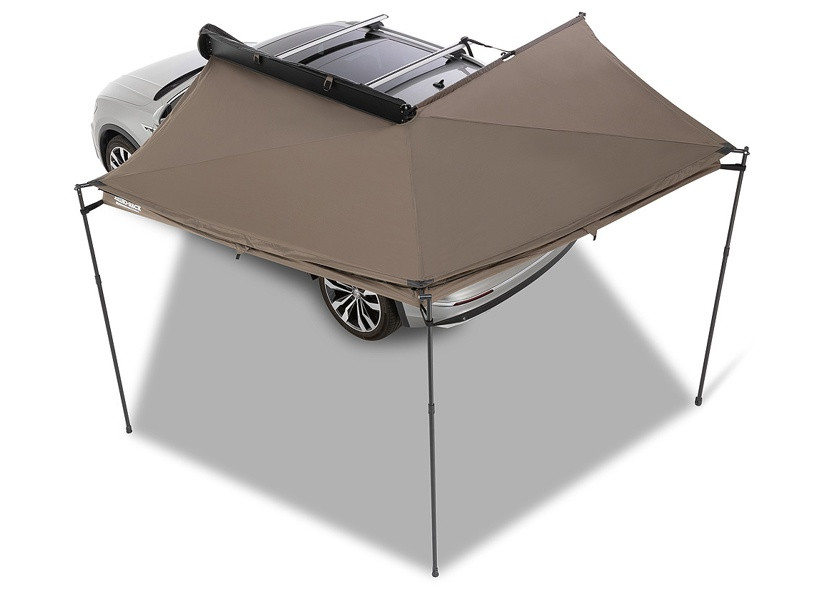

Rhino 33300 Batwing Compact Left Awning

The Rhino 33300 Batwing Compact Driver Side Awning is an easy-to-use rain and sun shelter that quickly attaches to your vehicle roof rack crossbars and offers 270 degrees of coverage.

Features:

• Offers 6.4 sq m (69 sq ft) of weather protection.
• Opens 270 degrees for wrap around shelter.
• Made from 2100 P/OX water resistant canvas material with a PU 2000 mm rating.
• Strong UV protection thanks to the UV50+ rating.
• Mold resistant and rust resistant.
• Stores in black heavy-duty PVC vinyl 580 gsm carrying bag with easy to grip zipper tabs.
• Sets up and stores away up in minutes.
• Rare earth magnets help keep awning stowed in storage bag.
• Includes poles, ropes, pegs and roof rack attachment kit.
• Pegs and guy ropes store inside attached awning pocket.
• Sturdy vertical support poles are telescopic, lightweight and hinge down from horizontal poles.
• Vertical poles can be stored extended or at desired height.
• Vertical support poles have molded bottom for ground spike insert.
• Velcro double stitched for increased durability.
• Bright orange guy ropes offer increased visibility.
• Additional awning extensions and side walls available (sold separately).
• Channels in awning frame offer mounting points for lightweight accessories such as shovel holders.
• Fits most full-length crossbars with top channel/ T track (hardware included) and some platforms.
• Brackets available (sold separately) to fit certain flush bars and non-T track bars.
• Fits Rhino Pioneer system (hardware included).

Specifications:

• Dimensions: Horizontal support arms extend out 1.89 m (74.5 in) from corner hinge point.
• Storage Bag (L x W x H): 2.0 m x 95 mm x 200 mm (78.75 in x 3.75 in x 7.85 in)
• Weight: 17.9 kg (39.5 lbs)
• Fits: Most full-length T track full length crossbars & Rhino Pioneer systems. Brackets (sold separately) available for many other crossbars and platforms. Will not fit flush bars as bars must extend past roof rack towers.
• Mounting position: Driver side (See also passenger side model 33400)
• Minimum crossbar spread: 700 mm (27.5 in)
• Includes: 10 pegs, 8 ropes with hooks, peg bag, 2 crossbar attachments, 2 spare hinge knuckles.
• Material: Rip-Stop polycotton canvas
• Warranty: 1 year
• Model: 33300

Instruction Manual
